124240-01871 Marine + Industrial

COVER

124240-01871 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links — they help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
3TN75E-G1 24hp3TN75E-G2 24hp3TN82E-G1 33hp3TN82E-G2 33hp3TN84L-RTBZ 33hp3TNE84-G1A3TNE84-G2A3TNE84-SA3TNE84C-G1A3TNE84T-EMP3TNV82A-BDSA33TNV82A-BDSA3C3TNV82A-BDSA3T3TNV82A-BPYBC3TNV82A-BPYBD3TNV82A-BPYBU3TNV84T-BKWM3TNV84T-BMCU3TNV88-BPTS 36hp4TN82E-G1 38hp4TN82E-G2 38hp4TNE84-EG1A4TNE84-ESA4TNE84-G1A014TNE84-G2A014TNE84-SA4TNE88-PG4TNV84T-DSA4TNV84T-DSA24TNV84T-DSA34TNV84T-GGE4TNV88-DSA 48hp4TNV88-DSA2 48hp4TNV88-DSA3 48hp4TNV88-GGE 48hp4TNV88-GMG 48hp3GM30 27hp3GM30-YEU 27hp3GM30B 27hp3GM30C 27hp3GM30C-YEU 27hp3GM30F 27hp3GM30F-YEU 27hp3GM30FC-YEU 27hp3GM30FVE 27hp3GM30VE 27hp3HM35C 34hp3HM35F 34hp3JH3CE 40hp3JH3E 40hp3JH3E(EPA) 40hp3JH40 40hp3JH4E 39hp3JH5E 38.5hp4JH110 110hp4JH3-DTE 125hp4JH3-HTE 100hp4JH3-TBE 75hp4JH3-TCE 75hp4JH3-TE 75hp4JH3CE 56hp4JH3CE1 56hp4JH3E 56hp4JH4-HTE 110hp4JH4-TE 75hp4JH45 45hp4JH4AE 55hp4JH4E 55hp4JH57 57hp4JH5E 53.8hp4JH80 80hp
No cross-references recorded for this part yet.

Used in 56 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
3TN75E-G1, 3TN75E-G2, 3TN82E-G1, 3TN82E-G2, 4TN82E-G1, 4TN82E-G2 3TN82E Parts Catalog Fig 3. GEAR HOUSING 7 6 1 1
3TN84L-RTBZ 3TN84L Parts Catalog Fig 2. GEAR HOUSING 6 6 1 1
3TNE84-G1A, 3TNE84-G2A, 3TNE84-SA, 3TNE84C-G1A 3TNE84 Parts Catalog Fig 2. GEAR HOUSING 6 8 1 1
3TNE84T-EMP 3TNE84T-EMP Parts Catalog Fig 2. GEAR HOUSING (A)=3TNE84T-EMP 6 7 1 1
3TNV82A-BDSA3, 3TNV82A-BDSA3C, 3TNV82A-BDSA3T 3TNV82A-BDSA3 Parts Catalog Fig 2. GEAR HOUSING 6 8 1 1
3TNV82A-BPYBC, 3TNV82A-BPYBD, 3TNV82A-BPYBU 3TNV82A-BPYBC Parts Catalog Fig 2. GEAR HOUSING (A)=3TNV82A-BPYBD 5 7 1 1
3TNV82A-BDSA3, 3TNV82A-BDSA3C, 3TNV82A-BDSA3T 3TNV82A-BDSA3 Parts Catalog Fig 2. GEAR HOUSING 6 23 1 1
3TNV84T-BKWM 3TNV84T-BKWM Parts Catalog Fig 2. GEAR HOUSING 6 7 1 1
3TNV84T-BMCU 3TNV84T-BMCU Parts Catalog Fig 2. GEAR HOUSING 6 7 1 1
3TNV84T-BKWM 3TNV84T-BKWM Parts Catalog Fig 2. GEAR HOUSING 6 21 1 1
3TNV88-BPTS 3TNV88 Parts Catalog Fig 2. GEAR HOUSING 6 7 1 1
4TNE84-EG1A, 4TNE84-ESA, 4TNE84-G1A01, 4TNE84-G2A01, 4TNE84-SA 4TNE84 Parts Catalog Fig 2. GEAR HOUSING (A)=4TNE84-SA 6 8 1 1
4TNE88-PG 4TNE88-PG Parts Catalog Fig 2. GEAR HOUSING (A)=4TNE88-PG 6 7 1 1
4TNV84T-DSA, 4TNV84T-DSA2, 4TNV84T-DSA3 4TNV84T Parts Catalog Fig 2. GEAR HOUSING (A)=4TNV84T-DSA 5 15 1 1
4TNV84T-DSA, 4TNV84T-DSA2, 4TNV84T-DSA3 4TNV84T Parts Catalog Fig 2. GEAR HOUSING (A)=4TNV84T-DSA 5 32 1 1
4TNV84T-GGE 4TNV84T Parts Catalog Fig 3. GEAR HOUSING (A)=4TNV84T-DSA 6 15 1 1
4TNV88-GMG 4TNV88-GMG Parts Catalog Fig 2. GEAR HOUSING (A)=4TNV88-GMG 6 15 1 1
4TNV88-DSA, 4TNV88-DSA2, 4TNV88-DSA3 4TNV88 Parts Catalog Fig 2. GEAR HOUSING 6 15 1 1
4TNV88-DSA, 4TNV88-DSA2, 4TNV88-DSA3 4TNV88 Parts Catalog Fig 2. GEAR HOUSING 6 32 1 1
4TNV88-GGE 4TNV88 Parts Catalog Fig 3. GEAR HOUSING 7 15 1 1

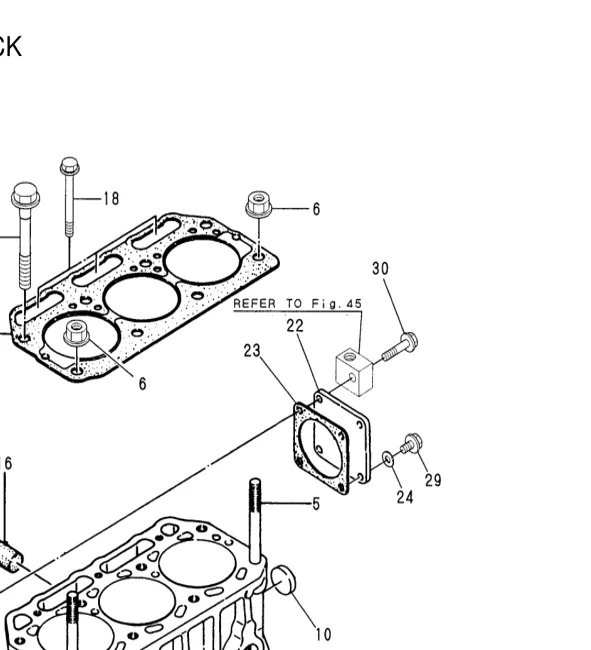

1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 1. CYLINDER BLOCK(1,2GM(F)) 7 38 1 1
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 2. CYLINDER BLOCK 9 31 1 1
3GM30, 3GM30-YEU, 3GM30C-YEU 3GM30-YEU Parts Catalog Fig 1. CYLINDER BLOCK 8 22 1 1
3GM30, 3GM30B, 3GM30C, 3GM30VE 3GM30 Parts Catalog Fig 1. CYLINDER BLOCK 9 23 1 1
3GM30, 3GM30F-YEU, 3GM30FC-YEU 3GM30-YEU Parts Catalog Fig 2. CYLINDER BLOCK 9 19 1 1
3GM30F, 3GM30FVE 3GM30 Parts Catalog Fig 2. CYLINDER BLOCK 10 20 1 1
3HM35C 3HM35 Parts Catalog Fig 1. CYLINDER BLOCK 2 25 1 1
3HM35F 3HM35 Parts Catalog Fig 2. CYLINDER BLOCK 3 20 1 1

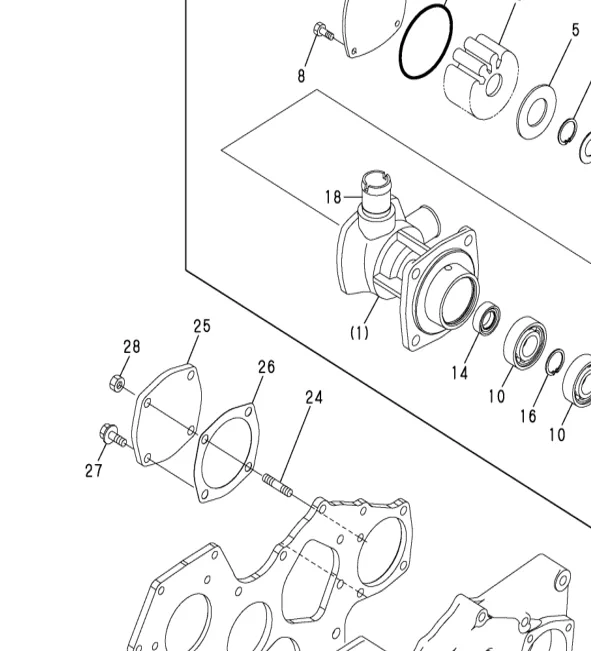

3JH3CE, 3JH3E, 3JH3E(EPA) 3JH3E Parts Catalog Fig 16. COOLING SEA WATER PUMP 17 28 1 1
3JH3CE, 3JH3E, 3JH3E(EPA) 3JH3E Parts Catalog (2) Fig 16. COOLING SEA WATER PUMP 21 25 1 1
3JH40 3JH40 Parts Catalog Fig 2. GEAR HOUSING 6 10 1 1
3JH40 3JH40 Parts Catalog Fig 2. GEAR HOUSING 6 17 1 1
3JH4E 3JH4E Parts Catalog Fig 2. GEAR HOUSING 6 15 1 1
3JH4E 3JH4E Parts Catalog Fig 16. COOLING SEA WATER PUMP 20 25 1 1
3JH4E 3JH4E Parts Catalog Fig 17. COOLING SEA WATER PUMP(OPTIONAL) 21 25 1 1
3JH5E 3JH5E Parts Catalog Fig 2. GEAR HOUSING 5 12 1 1
3JH5E 3JH5E Parts Catalog Fig 16. COOLING SEA WATER PUMP 19 25 1 1
3JH5E 3JH5E Parts Catalog Fig 16. COOLING SEA WATER PUMP 19 28 1 1
4JH3-DTE, 4JH3-HTE 4JH3-HTE-DTE Parts Catalog Fig 20. COOLING SEA WATER PUMP 21 28 1 1
4JH3-TBE, 4JH3-TCE, 4JH3-TE, 4JH3CE, 4JH3CE1, 4JH3E 4JH3E Parts Catalog Fig 26. COOLING SEA WATER PUMP 27 28 1 1
4JH4-HTE, 4JH4-TE 4JH4-TE-HTE Parts Catalog Fig 2. GEAR HOUSING 6 9 1 1
4JH45, 4JH57 4JH45-4JH57 Parts Catalog Fig 2. GEAR HOUSING 6 10 1 1
4JH45, 4JH57 4JH45-4JH57 Parts Catalog Fig 2. GEAR HOUSING 6 14 1 1
4JH45, 4JH57 4JH45-4JH57 Parts Catalog Fig 2. GEAR HOUSING 6 22 1 1
4JH4AE 4JH4AE Parts Catalog Fig 2. GEAR HOUSING 5 15 1 1
4JH4AE 4JH4AE Parts Catalog Fig 16. COOLING SEA WATER PUMP 19 25 1 1
4JH4AE 4JH4AE Parts Catalog Fig 16. COOLING SEA WATER PUMP 19 28 1 1
4JH4E 4JH4E Parts Catalog Fig 2. GEAR HOUSING 5 15 1 1
4JH4E 4JH4E Parts Catalog Fig 16. COOLING SEA WATER PUMP 19 25 1 1
4JH4E 4JH4E Parts Catalog Fig 17. C.S.W.PUMP(OPTIONAL) 20 25 1 1
4JH5E 4JH5E Parts Catalog Fig 2. GEAR HOUSING 5 12 1 1
4JH5E 4JH5E Parts Catalog Fig 16. COOLING SEA WATER PUMP 19 25 1 1
4JH5E 4JH5E Parts Catalog Fig 16. COOLING SEA WATER PUMP 19 28 1 1
4JH110, 4JH80 4JH80-4JH110 Parts Catalog Fig 2. GEAR HOUSING 6 10 1 1
4JH110, 4JH80 4JH80-4JH110 Parts Catalog Fig 2. GEAR HOUSING 6 14 1 1
4JH110, 4JH80 4JH80-4JH110 Parts Catalog Fig 2. GEAR HOUSING 6 22 1 1
