22217-060000 Marine + Industrial

WASHER, SPRING 6

22217-060000 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links — they help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
3TN75E-G1 24hp3TN75E-G2 24hp3TN82E-G1 33hp3TN82E-G2 33hp3TN84L-RTBZ 33hp4TN82E-G1 38hp4TN82E-G2 38hp4TNE84-EG1A4TNE84-ESA4TNE84-G1A014TNE84-G2A014TNE84-SA1GM 7.5hp1GM10 9hp1GM10C 9hp2YM15 14hp3GM30 27hp3GM30-YEU 27hp3GM30B 27hp3GM30C 27hp3GM30C-YEU 27hp3GM30F 27hp3GM30F-YEU 27hp3GM30FC-YEU 27hp3GM30FVE 27hp3GM30VE 27hp3HM35C 34hp3HM35F 34hp3JH2 38hp3JH2-TE 47hp3JH3CE 40hp3JH3E 40hp3JH3E(EPA) 40hp3JH4E 39hp3JH5E 38.5hp3QM 30hp3YM20 21hp3YM30 29hp3YM30AE 29hp4JH 44hp4JH-DTE 77hp4JH-HT 66hp4JH-HTE 75hp4JH-T 55hp4JH-TE 50hp4JH2-DTE 88hp4JH2-HTE 75hp4JH2-TE 62hp4JH2E 50hp4JH3-DTE 125hp4JH3-HTE 100hp4JH3-TBE 75hp4JH3-TCE 75hp4JH3-TE 75hp4JH3CE 56hp4JH3CE1 56hp4JH3E 56hp4JH4-HTE 110hp4JH4-TE 75hp4JH4AE 55hp4JH4E 55hp4JHE 44hp4LH-DTE 170hp4LH-HTE 140hp4LH-STE 230hp4LHA-DTE(P) 200hp4LHA-DTZE(P) 200hp4LHA-STE(P) 240hp4LHA-STZE(P) 240hp4LV150 150hp4LV170 170hp4LV195 195hp4LV230 230hp4LV250 250hpYSM12 12hpYSM8 8hp
Saildrives & gearboxes
ZT350ZT370

Supersession

Superseded by
Part No.DescriptionCodeApplies
119172-18260 WASHER, SPRING 6 N B=*2001.06; C=*2001.06
Replaces (older)
Part No.DescriptionCodeApplies
22212-060000 SPRING WASHER 6 N D=EXXX
No cross-references recorded for this part yet.

Used in 104 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
ZT350, ZT370 ZT350-ZT370 Parts Catalog Fig 1. EXHAUST & SEA WATER BLOCK-OFF(OPTIONAL) (A)=ZT350 4 8 2 2
ZT350, ZT370 ZT350-ZT370 Parts Catalog Fig 2. GIMBAL HOUSING (A)=ZT350 5 43 1 2
3TN75E-G1, 3TN75E-G2, 3TN82E-G1, 3TN82E-G2 3TN82E Parts Catalog Fig 24. FUEL INJECTION PUMP(3TN75/82E) 36 72 2 2
4TN82E-G1, 4TN82E-G2 3TN82E Parts Catalog Fig 25. FUEL INJECTION PUMP(4TN82E) 39 66 2 2
3TN84L-RTBZ 3TN84L Parts Catalog Fig 12. FUEL INJECTION PUMP 16 49 2 2
4TNE84-EG1A, 4TNE84-ESA, 4TNE84-G1A01, 4TNE84-G2A01, 4TNE84-SA 4TNE84 Parts Catalog Fig 13. FUEL INJECTION PUMP (A)=4TNE84-SA 18 99 2 2
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 1. CYLINDER BLOCK(1,2GM(F)) 7 32 2 2
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 3. GEAR HOUSING 10 35 1 3
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 5. LUB. OIL SUMP 13 18 1 13 / 17 / 21 / 23
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 13. AIR INTAKE SILENCER 23 30 1 2 / 3
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 23. LUB. OIL STRAINER 33 14 1 1
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 26. COOLING SEA WATER PUMP 36 56 1 3
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 27. COOLING FRESH WATER PUMP 38 18 1 4
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 35. FUEL FEED PUMP 47 5 1 2
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 37. FUEL STRAINER 49 18 1 2
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 39. GOVERNOR DRIVING 52 29 1 2
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 41. FUEL CONTROLLER 54 20 1 2
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 42. ENGINE STOP DEVIC 55 11 1 1
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 43. SPEED REMOTE CONTROL 56 16 1 2
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 43. SPEED REMOTE CONTROL 56 24 1 1
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 54. CLUTCH REMOTE CONTROL 67 12 1 2
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 54. CLUTCH REMOTE CONTROL 67 15 1 1
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 74. COOLING FRESH WATER PUMP & SUB-TANK 88 18 1 4
1GM10, 1GM10C 1GM10 Parts Catalog Fig 37. FUEL FEED PUMP 44 6 1 2
2YM15 2YM15 Parts Catalog Fig 14. COOLING FRESH WATER PUMP 18 27 1 4
2YM15 2YM15 Parts Catalog Fig 19. FUEL INJECTION PUMP 23 81 2 2

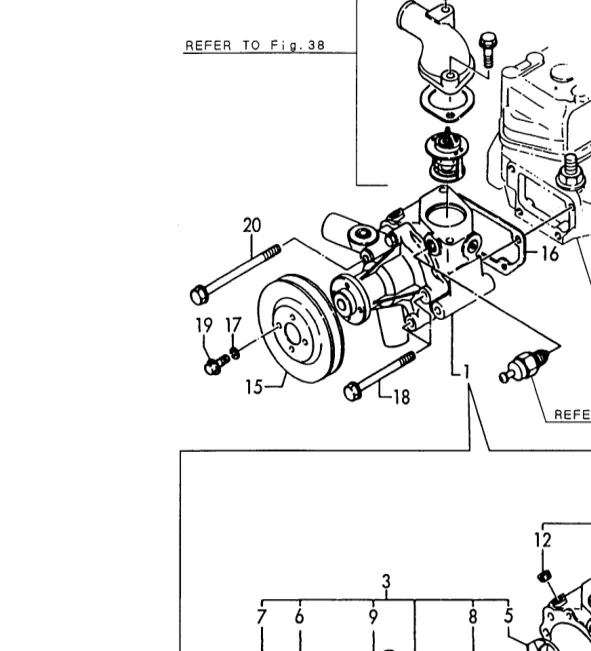

3GM30, 3GM30F-YEU, 3GM30FC-YEU 3GM30-YEU Parts Catalog Fig 32. COOLING FRESH WATER PUMP 41 17 1 4
3GM30F, 3GM30FVE 3GM30 Parts Catalog Fig 34. COOLING FRESH WATER PUMP 43 17 1 4
3GM30, 3GM30-YEU, 3GM30C-YEU, 3GM30F-YEU, 3GM30FC-YEU 3GM30-YEU Parts Catalog Fig 51. ENGINE STOP DEVICE 61 8 1 1
3GM30, 3GM30B, 3GM30C, 3GM30VE 3GM30 Parts Catalog Fig 56. ENGINE STOP DEVICE 65 8 1 1
3HM35F 3HM35 Parts Catalog Fig 34. COOLING FRESH WATER PUMP 35 17 1 4
3HM35C, 3HM35F 3HM35 Parts Catalog Fig 55. ENGINE STOP DEVICE 55 8 1 1
3JH2, 3JH2-TE 3JH2-TE yanmarshop parts.csv Fig 18. FUEL INJECTION PUMP 1 58 1
3JH2 3JH2 Parts Catalog Fig 28. WIRE HARNESS & SENSOR 33 17 1 2
3JH2, 3JH2-TE 3JH2-TE yanmarshop parts.csv Fig 34. ENGINE STOP DEVICE(OPTIONAL) 1 6 1
3JH3CE, 3JH3E, 3JH3E(EPA) 3JH3E Parts Catalog (2) Fig 24. FUEL INJECTION PUMP 30 63 3 2
3JH3CE, 3JH3E, 3JH3E(EPA) 3JH3E Parts Catalog Fig 24. FUEL INJECTION PUMP 26 63 3 2
3JH3CE, 3JH3E, 3JH3E(EPA) 3JH3E Parts Catalog Fig 31. ENGINE STOP DEVIC 36 13 1 2
3JH3CE, 3JH3E, 3JH3E(EPA) 3JH3E Parts Catalog (2) Fig 31. ENGINE STOP DEVIC 40 13 1 2
3JH3CE, 3JH3E, 3JH3E(EPA) 3JH3E Parts Catalog Fig 38. WIRE HARNESS & SENSOR 43 25 1 2
3JH3CE, 3JH3E, 3JH3E(EPA) 3JH3E Parts Catalog (2) Fig 38. WIRE HARNESS & SENSOR 47 25 1 2
3JH3CE, 3JH3E, 3JH3E(EPA) 3JH3E Parts Catalog Fig 39. WIRE HARNESS & SENSOR(EARTH FL 44 22 1 2
3JH3CE, 3JH3E, 3JH3E(EPA) 3JH3E Parts Catalog (2) Fig 39. WIRE HARNESS & SENSOR(EARTH FLOAT TYPE) 49 22 1 2

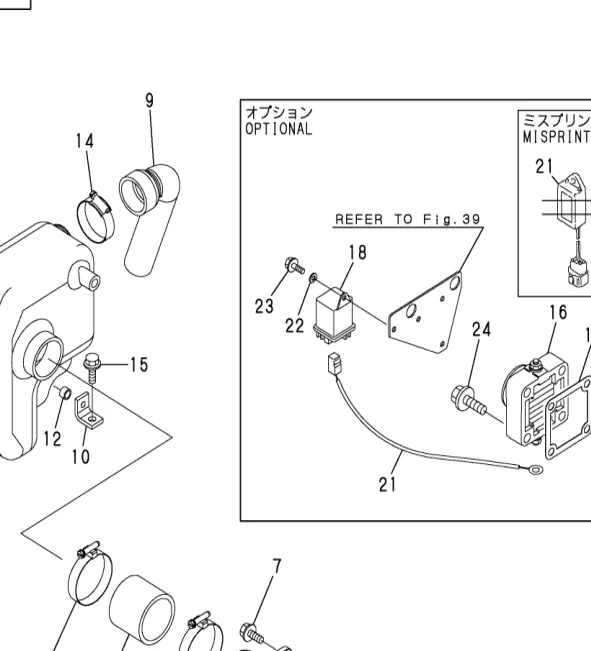

3JH4E 3JH4E Parts Catalog Fig 9. SUCTION MANIFOLD 13 22 1 1
3JH4E 3JH4E Parts Catalog Fig 39. WIRE HARNESS & SENSOR 45 13 1 1
3JH5E 3JH5E Parts Catalog Fig 38. WIRE HARNESS & SENSOR 43 43 1 2
3QM 3QM30 Parts Catalog Fig 3. CYLINDER HEAD 7 69-1 ▲ 2
3QM 3QM30 Parts Catalog Fig 4. SILENCER & EXHAUST MANIFOLD 10 5-1 ▲ 1 3
3QM 3QM30 Parts Catalog Fig 4. SILENCER & EXHAUST MANIFOLD 10 44-1 ▲ 1 4
3QM 3QM30 Parts Catalog Fig 8. LUB.OIL SYSTEM 16 47-1 ▲ 1 1
3QM 3QM30 Parts Catalog Fig 11. C.F.W.PUMP & C.F.W.COOLER 21 12-1 ▲ 1 4
3QM 3QM30 Parts Catalog Fig 11. C.F.W.PUMP & C.F.W.COOLER 21 18-1 ▲ 1 5
3QM 3QM30 Parts Catalog Fig 11. C.F.W.PUMP & C.F.W.COOLER 21 45-1 ▲ 2 20
3QM 3QM30 Parts Catalog Fig 12. COOLING WATER SYSTEM 23 41-1 ▲ 1
3QM 3QM30 Parts Catalog Fig 15. FUEL SYSTEM 27 20-1 ▲ 1 2
3QM 3QM30 Parts Catalog Fig 15. FUEL SYSTEM 27 20-2 ▲ 1 2
3QM 3QM30 Parts Catalog Fig 15. FUEL SYSTEM 27 75-1 ▲ 1 2
3QM 3QM30 Parts Catalog Fig 16. REMOTE-CONTROL DEVICE(OPTIONAL) 29 15-1 ▲ 2 2
3QM 3QM30 Parts Catalog Fig 17. GOVERNOR 30 40-1 ▲ 1 1
3QM 3QM30 Parts Catalog Fig 18. HAND STARTING MECHANISM 34 29-1 ▲ 2 5
3QM 3QM30 Parts Catalog Fig 22. CLUTCH HOUSING 39 45-1 ▲ 1 2
3QM 3QM30 Parts Catalog Fig 22. CLUTCH HOUSING 39 82-1 ▲ 1 2
3YM20 3YM20 Parts Catalog Fig 14. COOLING PUMP(FRESH WATER) 19 27 1 4
3YM20 3YM20 Parts Catalog Fig 14. COOLING PUMP(FRESH WATER) 19 27-1 ▲ 1 4
3YM20 3YM20 Parts Catalog Fig 20. FUEL INJECTION PUMP 27 83 2 2
3YM20 3YM20 Parts Catalog Fig 34. WIRE HARNESS & RELAY 46 13 1 1
3YM30 3YM30 Parts Catalog Fig 14. COOLING FRESH WATER PUMP 18 27 1 4
3YM30 3YM30 Parts Catalog Fig 20. FUEL INJECTION PUMP 24 83 2 2
3YM30, 3YM30AE 3YM30AE Parts Catalog Fig 33. RELAY 38 13 1 1
4JH, 4JH-T 4JH 4JH-T 4JH-HT Parts Catalog Fig 28. FUEL INJECTION PUMP 37 58 2 2
4JH-HT 4JH 4JH-T 4JH-HT Parts Catalog Fig 29. FUEL INJECTION PUMP 40 58 2 2
4JH, 4JH-DTE 4JH-DTE Parts Catalog Fig 36. FUEL INJECTION PUMP 41 58 2 2
4JH, 4JH-HTE 4JH-HTE Parts Catalog Fig 36. FUEL INJECTION PUMP 32 58 2 2
4JH, 4JH-HT, 4JH-T 4JH 4JH-T 4JH-HT Parts Catalog Fig 43. WIRE HARNESS & SENSOR 62 22 1 2
4JH, 4JH-DTE 4JH-DTE Parts Catalog Fig 67. ENGINE STOP DEVICE 75 6 1 2
4JH2E 4JH2 Parts Catalog Fig 30. FUEL INJECTION PUMP(4JH2E) 42 56 2 2
4JH2-DTE, 4JH2-HTE, 4JH2-TE, 4JH2E 4JH2 Parts Catalog Fig 52. ENGINE STOP DEVICE 67 6 1 2
4JH2E 4JH2E Parts Catalog Fig 30. FUEL INJECTION PUMP(4JH2E) 42 56 2 2
4JH2-DTE, 4JH2-HTE, 4JH2-TE, 4JH2E 4JH2E Parts Catalog Fig 52. ENGINE STOP DEVICE 67 6 1 2
4JH3-DTE, 4JH3-HTE 4JH3-HTE-DTE Parts Catalog Fig 38. WIRE HARNESS & SENSOR 40 31 1 2
4JH3-DTE, 4JH3-HTE 4JH3-HTE-DTE Parts Catalog Fig 39. WIRE HARNESS(EARTH FLOAT TYPE) 41 23 1 2
4JH3CE, 4JH3CE1, 4JH3E 4JH3E Parts Catalog Fig 35. FUEL INJECTION PUMP(4JH3E) 40 59 2 2
4JH3CE, 4JH3CE1, 4JH3E 4JH3E Parts Catalog Fig 44. ENGINE STOP DEVIC(4JH3E) 52 26 1 2
4JH3-TBE, 4JH3-TCE, 4JH3-TE, 4JH3CE, 4JH3CE1, 4JH3E 4JH3E Parts Catalog Fig 54. WIRE HARNESS & SENSOR 63 31 1 2
4JH3-TBE, 4JH3-TCE, 4JH3-TE, 4JH3CE, 4JH3CE1, 4JH3E 4JH3E Parts Catalog Fig 55. WIRE HARNESS(EARTH FLOAT TYPE) 65 23 1 2
4JH4-HTE, 4JH4-TE 4JH4-TE-HTE Parts Catalog Fig 9. SUCTION MANIFOLD 13 17 1 1
4JH4AE 4JH4AE Parts Catalog Fig 39. WIRE HARNESS & SENSOR 44 43 1 1
4JH4E 4JH4E Parts Catalog Fig 9. SUCTION MANIFOLD 12 28 1 1
4JH4E 4JH4E Parts Catalog Fig 41. WIRE HARNESS & SENSOR 47 13 1 1
4JH-TE, 4JHE 4JHE-4JH-TE Parts Catalog Fig 44. FUEL INJECTION PUMP 49 58 2 2
4JH-TE, 4JHE 4JHE-4JH-TE Parts Catalog Fig 83. ENGINE STOP DEVICE 91 6 1 2
4LH-DTE, 4LH-HTE 4LH Parts Catalog Fig 23. AIR COOLER(4LH-HTE,DTE) 34 9 2 20
4LH-DTE 4LH Parts Catalog Fig 51. GOVERNOR(4LH-DTE)(UP TO EXXXXX) 68 65 1 2
4LH-STE 4LH Parts Catalog Fig 53. GOVERNOR(4LH-STE) 73 138 2 1
4LH-DTE, 4LH-STE 4LH Parts Catalog Fig 54. FUEL FEED PUMP 77 26 2 3
4LH-DTE, 4LH-STE 4LH Parts Catalog Fig 64. ENGINE STOP DEVICE 90 30 1 2
4LHA-DTE(P), 4LHA-DTZE(P), 4LHA-STE(P), 4LHA-STZE(P) 4LHA Parts Catalog Fig 43. GOVERNOR 56 138 2 1
4LHA-DTE(P), 4LHA-DTZE(P), 4LHA-STE(P), 4LHA-STZE(P) 4LHA Parts Catalog Fig 44. FUEL FEED PUMP 60 24 2 3
4LHA-DTE(P), 4LHA-DTZE(P), 4LHA-STE(P), 4LHA-STZE(P) 4LHA Parts Catalog Fig 53. ENGINE STOP DEVICE(4LHA-ST/DT(Z)E(P)) 70 6 1 2
4LV150, 4LV170, 4LV195, 4LV230, 4LV250 4LV Parts Catalog Fig 54. BRACKET(ECU) 71 8 1 8
4LV150, 4LV170, 4LV195, 4LV230, 4LV250 4LV Parts Catalog Fig 55. BRACKET(EDU) 72 6 1 8
YSM12, YSM8 YSM YA YC Parts Catalog Fig 1. CYLINDER BLOCK 10 1-29 1 6
YSM12, YSM8 YSM YA YC Parts Catalog Fig 2. CYL. SIDE COVER & LUB. OIL SYSTEM 16 2-22 1 10
YSM12, YSM8 YSM YA YC Parts Catalog Fig 12. FUEL OIL SYSTEM 61 12-20 1 2
