25132-003700 Marine + Industrial
V-BELT, A37
25132-003700 — Affiliate Parts Search
As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links — they help pay for the site, at no extra cost to you. More
Fitted to
Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.
EnginesSupersession
Superseded by
| Part No. | Description | Code | Applies |
|---|---|---|---|
| 25132-003800 | V-BELT, A38 | N | B=E13430; D=E00257 |
OEM interchange
Other OEM part numbers for the same part — order from any of these makers or their dealers.
Aftermarket equivalents cross-ref
Third-party equivalents (Jabsco, Sierra, WIX, Mann…) — not OEM; verify before ordering. Usually cheaper than the marine dealer.
| Equivalent P/N | Brand | Description | Source | Confidence |
|---|---|---|---|---|
| A37 | Gates | Standard A-section V-belt 39in OD (Dayco/Bando same; 4L390) - same size as 124732-42290 | vbelts4less.com | confirmed |
Used in 5 places
Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.
| Model(s) | Catalog | Figure | Page | Ref | Lev | Qty |
|---|---|---|---|---|---|---|
| 3TNE84-G1A, 3TNE84C-G1A | 3TNE84 Parts Catalog | Fig 11. COOLING WATER SYSTEM | 17 | 17 | 1 | 1 |
| 3TNV82A-BDSA3, 3TNV82A-BDSA3C, 3TNV82A-BDSA3T | 3TNV82A-BDSA3 Parts Catalog | Fig 10. COOLING WATER SYSTEM | 14 | 18 | 1 | 1 |
| 4TNE84-ESA, 4TNE84-SA | 4TNE84 Parts Catalog | Fig 11. COOLING WATER SYSTEM (A)=4TNE84-SA | 15 | 24 | 1 | 1 |

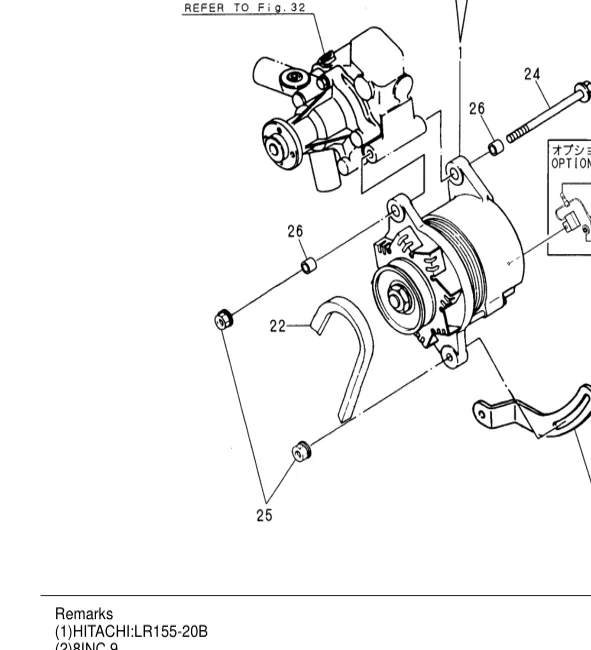

| 3GM30, 3GM30F-YEU, 3GM30FC-YEU | 3GM30-YEU Parts Catalog | Fig 56. GENERATOR | 66 | 22 | 1 | 1 |
| 3GM30, 3GM30F-YEU, 3GM30FC-YEU | 3GM30-YEU Parts Catalog | Fig 83. REPAIR PART(OPTIONAL) | 93 | 21 | 2 | 1 |
