26106-100302 Marine + Industrial

BOLT, M10X 30 PLATED

26106-100302 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links — they help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
3TN82E-G1 33hp3TNE84-G1A3TNE84-SA3TNE84C-G1A3TNV82A-BDSA33TNV82A-BDSA3C3TNV82A-BDSA3T4TN82E-G1 38hp4TNE84-EG1A4TNE84-ESA4TNE84-G1A014TNE84-SA4TNV84T-DSA4TNV84T-DSA24TNV84T-DSA34TNV88-DSA 48hp4TNV88-DSA2 48hp4TNV88-DSA3 48hp1GM10 9hp1GM10C 9hp2YM15 14hp3GM30 27hp3GM30-YEU 27hp3GM30B 27hp3GM30C 27hp3GM30C-YEU 27hp3GM30F 27hp3GM30F-YEU 27hp3GM30FC-YEU 27hp3GM30FVE 27hp3GM30VE 27hp3JH2 38hp3JH2-TE 47hp3JH2Z 38hp3JH3CE 40hp3JH3E 40hp3JH3E(EPA) 40hp3JH40 40hp3JH4E 39hp3JH5E 38.5hp3YM20 21hp3YM30 29hp3YM30AE 29hp4JH 44hp4JH-DTE 77hp4JH-HT 66hp4JH-HTE 75hp4JH-T 55hp4JH-TE 50hp4JH110 110hp4JH2-DTE 88hp4JH2-HTE 75hp4JH2-TE 62hp4JH2-UTE(B) 100hp4JH2E 50hp4JH3-DTE 125hp4JH3-HTE 100hp4JH3-TBE 75hp4JH3-TCE 75hp4JH3-TE 75hp4JH3E 56hp4JH4-HTE 110hp4JH4-TE 75hp4JH45 45hp4JH4AE 55hp4JH4E 55hp4JH57 57hp4JH5E 53.8hp4JH80 80hp4JHE 44hp4LH-DTE 170hp4LH-HTE 140hp4LH-STE 230hp4LHA-DTE(P) 200hp4LHA-DTZE(P) 200hp4LHA-HTE(P) 160hp4LHA-HTZE(P) 160hp4LHA-STE(P) 240hp4LHA-STZE(P) 240hp6LP-DTE 250hp6LP-STE 300hp6LPA-STP2 315hp

Supersession

Superseded by
Part No.DescriptionCodeApplies
26106-100352 BOLT, M10X 35 PLATED N A=EXXXXX; B=EXXXXX; C=EXXXXX; D=EXXXXX; D=EXXXXX; E=EXXXXX; F=EXXXXX
26203-100302 BOLT, M10X 30 PLATED N B=*1987.08
Replaces (older)
Part No.DescriptionCodeApplies
26106-080252 BOLT, M8X 25 PLATED N

OEM interchange

Other OEM part numbers for the same part — order from any of these makers or their dealers.

248200765210230952102309

Standard component cross-ref

An industry-standard component — buy from any bearing / seal / o-ring house; just specify the designation.

Equivalent P/NBrandDescriptionSourceConfidence
DIN 933 M10x30 DIN/ISO 8.8 OEM catalog names DIN 933 M10x30 class 8.8 - site_brand=sole-diesel - depth:bolts fasteners.eu; monsterbolts.com confirmed

Used in 110 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
3TN82E-G1, 4TN82E-G1 3TN82E Parts Catalog Fig 23. RADIATOR & COOLING WATER LINE 33 33 1 8
3TNE84-G1A, 3TNE84-SA, 3TNE84C-G1A 3TNE84 Parts Catalog Fig 12. RADIATOR 19 19 1 8
3TNV82A-BDSA3, 3TNV82A-BDSA3C, 3TNV82A-BDSA3T 3TNV82A-BDSA3 Parts Catalog Fig 7. CAMSHAFT & DRIVING GEAR 11 23 1 2
4TNE84-EG1A, 4TNE84-ESA, 4TNE84-G1A01, 4TNE84-SA 4TNE84 Parts Catalog Fig 12. RADIATOR (A)=4TNE84-SA 16 21 1 8
4TNV84T-DSA, 4TNV84T-DSA2, 4TNV84T-DSA3 4TNV84T Parts Catalog Fig 8. CAMSHAFT & DRIVING GEAR (A)=4TNV84T-DSA 12 24 1 2
4TNV88-DSA, 4TNV88-DSA2, 4TNV88-DSA3 4TNV88 Parts Catalog Fig 8. CAMSHAFT & DRIVING GEAR 12 24 1 2
1GM10 1GM10 Parts Catalog Fig 5. FLYWHEEL HOUSING 12 2 1 8
1GM10, 1GM10C 1GM10 Parts Catalog Fig 54. STARTING MOTOR 61 4 1 2
2YM15 2YM15 Parts Catalog Fig 12. LUB.OIL SYSTEM 16 9 1 1
2YM15 2YM15 Parts Catalog Fig 30. GENERATOR 36 14 1 1

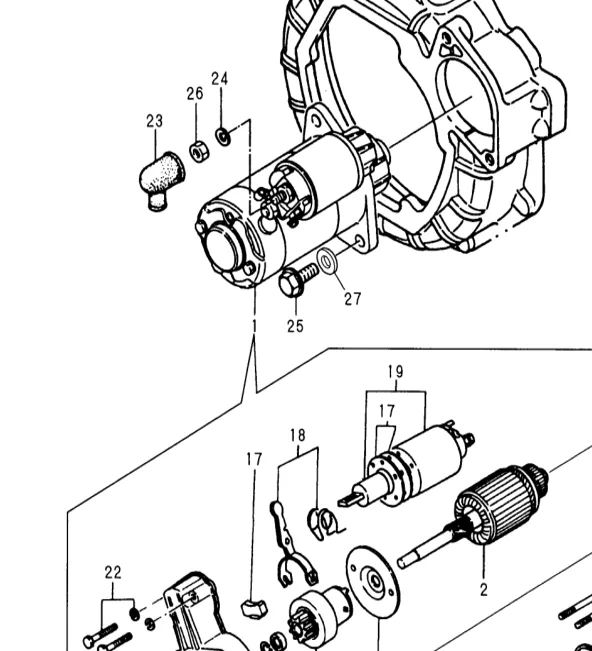

3GM30, 3GM30-YEU, 3GM30C-YEU, 3GM30F-YEU, 3GM30FC-YEU 3GM30-YEU Parts Catalog Fig 54. STARTING MOTOR 64 25 1 2
3GM30, 3GM30B, 3GM30C, 3GM30F, 3GM30FVE, 3GM30VE 3GM30 Parts Catalog Fig 59. STARTING MOTOR 68 4 1 2
3JH2, 3JH2Z 3JH2 Parts Catalog Fig 3. FLYWHEEL HOUSING& LUB. OIL SUMP 6 4 1 6
3JH2, 3JH2-TE 3JH2-TE yanmarshop parts.csv Fig 3. FLYWHEEL HOUSING & LUB. OIL SUMP 1 4 1
3JH2, 3JH2Z 3JH2 Parts Catalog Fig 22. FUEL PIPE 26 31 1 2
3JH2, 3JH2-TE 3JH2-TE yanmarshop parts.csv Fig 22. FUEL PIPE 1 31 1
3JH3CE, 3JH3E, 3JH3E(EPA) 3JH3E Parts Catalog Fig 4. MOUNTING FOOT 5 6 1 2
3JH3CE, 3JH3E, 3JH3E(EPA) 3JH3E Parts Catalog (2) Fig 4. MOUNTING FOOT 8 6 1 2
3JH3CE, 3JH3E, 3JH3E(EPA) 3JH3E Parts Catalog Fig 4. MOUNTING FOOT 5 7 1 4
3JH3CE, 3JH3E, 3JH3E(EPA) 3JH3E Parts Catalog (2) Fig 4. MOUNTING FOOT 8 7 1 4
3JH40 3JH40 Parts Catalog Fig 7. MOUNTING FOOT 11 6 1 2
3JH40 3JH40 Parts Catalog Fig 41. ALTERNATOR KIT(2ND)(OPTIONAL) 45 26 2 2
3JH40 3JH40 Parts Catalog Fig 42. ALTERNATOR KIT(2ND)(ISOLATED TYPE)(OPTIONAL) 46 26 2 2
3JH4E 3JH4E Parts Catalog Fig 4. MOUNTING FOOT 8 5 1 2
3JH4E 3JH4E Parts Catalog Fig 38. V-BELT COVER & GENERATOR ATTACHMENT 44 15-1 ▲ 1 3
3JH4E 3JH4E Parts Catalog Fig 38. V-BELT COVER & GENERATOR ATTACHMENT 44 17 1 2
3JH5E 3JH5E Parts Catalog Fig 29. OIL/WATER SEPARATER 33 19 1 2
3JH5E 3JH5E Parts Catalog Fig 37. V-BELT COVER & GENERATOR ATTACHMENT PARTS(OPTIONAL) 42 18 1 3
3JH5E 3JH5E Parts Catalog Fig 37. V-BELT COVER & GENERATOR ATTACHMENT PARTS(OPTIONAL) 42 20 1 2
3YM20 3YM20 Parts Catalog Fig 31. GENERATOR(HITACHI/60A)(UP TO SEP. 2010) 41 14 1 1
3YM20 3YM20 Parts Catalog Fig 32. GENERATOR(HITACHI/80A)(UP TO E/#E11905) 42 29 1 1
3YM20 3YM20 Parts Catalog Fig 41. (32A)GENERATOR(VALEO)(FROM E/#E11906) 43 9 1 1
3YM20 3YM20 Parts Catalog Fig 48. (24A)WATER SEPARATOR 34 22 1 2
3YM30, 3YM30AE 3YM30AE Parts Catalog Fig 29. GENERATOR(VALEO) 34 9 1 1
3YM30 3YM30 Parts Catalog Fig 31. GENERATOR 37 15 1 1
3YM30 3YM30 Parts Catalog Fig 32. GENERATOR(80A/OPTIONAL) 38 30 1 1
4JH, 4JH-DTE 4JH-DTE Parts Catalog Fig 3. FLYWHEEL HOUSING 8 4 1 6
4JH, 4JH-HTE 4JH-HTE Parts Catalog Fig 3. FLYWHEEL HOUSING 26 4 1 6
4JH, 4JH-HT, 4JH-T 4JH 4JH-T 4JH-HT Parts Catalog Fig 3. FLYWHEEL HOUSING 7 4 1 6
4JH, 4JH-DTE 4JH-DTE Parts Catalog Fig 40. FUEL STRAINER 46 6 1 2
4JH, 4JH-HTE 4JH-HTE Parts Catalog Fig 40. FUEL STRAINER 38 6 1 2
4JH, 4JH-T 4JH 4JH-T 4JH-HT Parts Catalog Fig 46. CLUCH ASSY(YX-10) 65 4 1 8
4JH-HT 4JH 4JH-T 4JH-HT Parts Catalog Fig 47. CLUCH ASSY (YX-15) 66 4 1 8
4JH, 4JH-DTE 4JH-DTE Parts Catalog Fig 49. CLUTCH (KBW-21) 56 4 1 8
4JH, 4JH-HTE 4JH-HTE Parts Catalog Fig 49. CLUTCH (KBW-21) 47 5 1 8
4JH, 4JH-HTE 4JH-HTE Parts Catalog Fig 78. CLUTCH HOUSING 79 10 1 12
4JH, 4JH-DTE 4JH-DTE Parts Catalog Fig 79. CLUTCH HOUSING 87 10 1 12
4JH2-DTE, 4JH2-HTE, 4JH2-TE, 4JH2-UTE(B), 4JH2E 4JH2 Parts Catalog Fig 3. FLYWHEEL HOUSING 11 4 1 6
4JH2-DTE, 4JH2-HTE, 4JH2-TE, 4JH2E 4JH2 Parts Catalog Fig 35. FUEL PIPE(4JH2-E,TE,HTE,DTE) 48 31 1 2
4JH2-DTE, 4JH2-HTE, 4JH2-TE, 4JH2-UTE(B), 4JH2E 4JH2 Parts Catalog Fig 64. CLUTCH ASSY(KM4A) 92 8 1 8
4JH2-TE, 4JH2E 4JH2 Parts Catalog Fig 73. CLUTCH ASSY(KBW20) 93 7 1 8
4JH2-DTE, 4JH2-HTE 4JH2 Parts Catalog Fig 80. CLUTCH ASSY(KBW21) 94 4 1 8
4JH2E 4JH2 Parts Catalog Fig 87. CLUTCH ASSY(KM3P2) 95 4 1 10
4JH2-DTE, 4JH2-HTE, 4JH2-TE, 4JH2-UTE(B), 4JH2E 4JH2E Parts Catalog Fig 3. FLYWHEEL HOUSING 11 4 1 6
4JH2-DTE, 4JH2-HTE, 4JH2-TE, 4JH2E 4JH2E Parts Catalog Fig 35. FUEL PIPE(4JH2-E,TE,HTE,DTE) 48 31 1 2
4JH2-DTE, 4JH2-HTE, 4JH2-TE, 4JH2-UTE(B), 4JH2E 4JH2E Parts Catalog Fig 64. CLUTCH ASSY(KM4A) 92 8 1 8
4JH2-DTE, 4JH2-HTE, 4JH2-TE, 4JH2-UTE(B), 4JH2E 4JH2E Parts Catalog Fig 65. CLUTCH HOUSING 93 20 1 8
4JH2-TE, 4JH2E 4JH2E Parts Catalog Fig 73. CLUTCH ASSY(KBW20) 101 7 1 8
4JH2-TE, 4JH2E 4JH2E Parts Catalog Fig 74. CLUTCH HOUSING 102 10 1 12
4JH2-DTE, 4JH2-HTE 4JH2E Parts Catalog Fig 80. CLUTCH ASSY(KBW21) 108 4 1 8
4JH2-DTE, 4JH2-HTE 4JH2E Parts Catalog Fig 81. CLUTCH HOUSING 109 10 1 12
4JH2E 4JH2E Parts Catalog Fig 87. CLUTCH ASSY(KM3P2) 115 4 1 10
4JH3-DTE, 4JH3-HTE 4JH3-HTE-DTE Parts Catalog Fig 3. FLYWHEEL HOUSING 4 4 1 6
4JH3-DTE, 4JH3-HTE 4JH3-HTE-DTE Parts Catalog Fig 37. GENERATOR(80A:NEW) 39 26 1 1
4JH3-DTE, 4JH3-HTE 4JH3-HTE-DTE Parts Catalog Fig 46. CLUTCH 48 9 1 8
4JH3-TBE, 4JH3-TCE, 4JH3-TE 4JH3E Parts Catalog Fig 5. FLYWHEEL HOUSING 6 14 1 6
4JH3E 4JH3E Parts Catalog Fig 6. MOUNTING FOOT(4JH3E) 7 6 1 2
4JH3E 4JH3E Parts Catalog Fig 6. MOUNTING FOOT(4JH3E) 7 7 1 4
4JH3-TBE, 4JH3-TCE, 4JH3-TE 4JH3E Parts Catalog Fig 53. GENERATOR(4JH3-TE:NEW) 62 26 1 1
4JH3-TBE, 4JH3-TE 4JH3E Parts Catalog Fig 70. CLUTCH 80 30 1 8
4JH4-HTE, 4JH4-TE 4JH4-TE-HTE Parts Catalog Fig 34. CLUTCH 39 10 1 8
4JH4-HTE, 4JH4-TE 4JH4-TE-HTE Parts Catalog Fig 40. V-BELT COVER & GENERATOR ATTACHMENT 45 16 1 5
4JH45, 4JH57 4JH45-4JH57 Parts Catalog Fig 39. ALTERNATOR KIT(2ND)(OPTIONAL) 49 23 2 2
4JH45, 4JH57 4JH45-4JH57 Parts Catalog Fig 60. (39A)ALTERNATOR KIT(2ND)(ISOLATED TYPE)(OPTIONAL) 50 26 2 2
4JH4AE 4JH4AE Parts Catalog Fig 30. OIL/WATER SEPARATER 35 19 1 2
4JH4AE 4JH4AE Parts Catalog Fig 38. V-BELT COVER & GENERATOR ATTACHIMENT(OPTIONAL) 43 18 1 3
4JH4AE 4JH4AE Parts Catalog Fig 38. V-BELT COVER & GENERATOR ATTACHIMENT(OPTIONAL) 43 20 1 2
4JH4E 4JH4E Parts Catalog Fig 4. MOUNTING FOOT 7 13 1 2
4JH4E 4JH4E Parts Catalog Fig 40. V-BELT COVER & GENERATOR ATTACHMENT 46 20 1 2
4JH5E 4JH5E Parts Catalog Fig 29. OIL/WATER SEPARATER 33 19 1 2
4JH5E 4JH5E Parts Catalog Fig 37. V-BELT COVER & GENERATOR ATTACHMENT PARTS(OPTIONAL) 42 18 1 3
4JH5E 4JH5E Parts Catalog Fig 37. V-BELT COVER & GENERATOR ATTACHMENT PARTS(OPTIONAL) 42 20 1 2
4JH110, 4JH80 4JH80-4JH110 Parts Catalog Fig 48. ALTERNATOR KIT(2ND)(OPTIONAL) 57 23 2 2
4JH110, 4JH80 4JH80-4JH110 Parts Catalog Fig 51. CLUTCH(OPTIONAL) 63 10 1 10
4JH110, 4JH80 4JH80-4JH110 Parts Catalog Fig 70. (48A)ALTERNATOR KIT(2ND)(ISOLATED TYPE)(OPTIONAL) 58 26 2 2
4JH-TE, 4JHE 4JHE-4JH-TE Parts Catalog Fig 3. FLYWHEEL HOUSING 8 4 1 6
4JH-TE, 4JHE 4JHE-4JH-TE Parts Catalog Fig 50. FUEL STRAINER 56 6 1 2
4JH-TE, 4JHE 4JHE-4JH-TE Parts Catalog Fig 60. CLUTCH (KBW-20) 68 7 1 8
4JHE 4JHE-4JH-TE Parts Catalog Fig 95. CLUTCH HOUSING 103 10 1 12
4LH-DTE, 4LH-HTE, 4LH-STE 4LH Parts Catalog Fig 3. FLYWHEEL HOUSING 9 5 1 4
4LH-DTE, 4LH-HTE, 4LH-STE 4LH Parts Catalog Fig 7. ENGINE BRACKET 14 5 1 8
4LH-STE 4LH Parts Catalog Fig 7. ENGINE BRACKET 14 10 1 8
4LH-DTE, 4LH-HTE 4LH Parts Catalog Fig 7. ENGINE BRACKET 14 13 1 8
4LH-HTE 4LH Parts Catalog Fig 13. TURBINE(4LH-TE,HTE) 22 6 1 2
4LH-DTE, 4LH-HTE, 4LH-STE 4LH Parts Catalog Fig 27. CRANKSHAFT & FLYWHEEL 40 13 1 6
4LH-DTE 4LH Parts Catalog Fig 63. OIL/WATER SEPARATER(OPTIONAL) 88 11 1 2
4LH-DTE, 4LH-HTE 4LH Parts Catalog Fig 71. CLUTCH 99 4 1 12
4LHA-DTE(P), 4LHA-DTZE(P), 4LHA-HTE(P), 4LHA-HTZE(P), 4LHA-STE(P), 4LHA-STZE(P) 4LHA Parts Catalog Fig 3. FLYWHEEL HOUSING 9 9 1 4
4LHA-DTZE(P), 4LHA-HTZE(P), 4LHA-STZE(P) 4LHA Parts Catalog Fig 3. FLYWHEEL HOUSING 9 13 1 12
4LHA-DTE(P), 4LHA-DTZE(P), 4LHA-STE(P), 4LHA-STZE(P) 4LHA Parts Catalog Fig 4. MOUNTING FOOT(4LHA-ST/DT(Z)E(P)) 10 2 1 8
4LHA-DTE(P), 4LHA-DTZE(P), 4LHA-STE(P), 4LHA-STZE(P) 4LHA Parts Catalog Fig 4. MOUNTING FOOT(4LHA-ST/DT(Z)E(P)) 10 4 1 8
4LHA-HTE(P), 4LHA-HTZE(P) 4LHA Parts Catalog Fig 5. MOUNTING FOOT(4LHA-HT(Z)E(P)) 11 4 1 8
4LHA-HTE(P), 4LHA-HTZE(P) 4LHA Parts Catalog Fig 5. MOUNTING FOOT(4LHA-HT(Z)E(P)) 11 12 1 8
4LHA-DTE(P), 4LHA-HTE(P), 4LHA-STE(P) 4LHA Parts Catalog Fig 20. CRANKSHAFT 29 24 1 6
4LHA-DTZE(P), 4LHA-HTZE(P), 4LHA-STZE(P) 4LHA Parts Catalog Fig 55. POWER STEERING PUMP 72 6 1 6
6LPA-STP2 6LPA Parts Catalog Fig 4. MOUNTING FOOT 11 5 1 4
6LP-DTE, 6LP-STE 6LP Parts Catalog Fig 5. MOUNTING FOOT 12 5 1 4
6LPA-STP2 6LPA Parts Catalog Fig 48. CLUTCH & DRIVE ATTACHMENT 55 3 1 6
6LPA-STP2 6LPA Parts Catalog Fig 48. CLUTCH & DRIVE ATTACHMENT 55 6 1 6
6LP-DTE, 6LP-STE 6LP Parts Catalog Fig 56. CLUTCH & DRIVE ATTACHMENT 63 3 1 6
